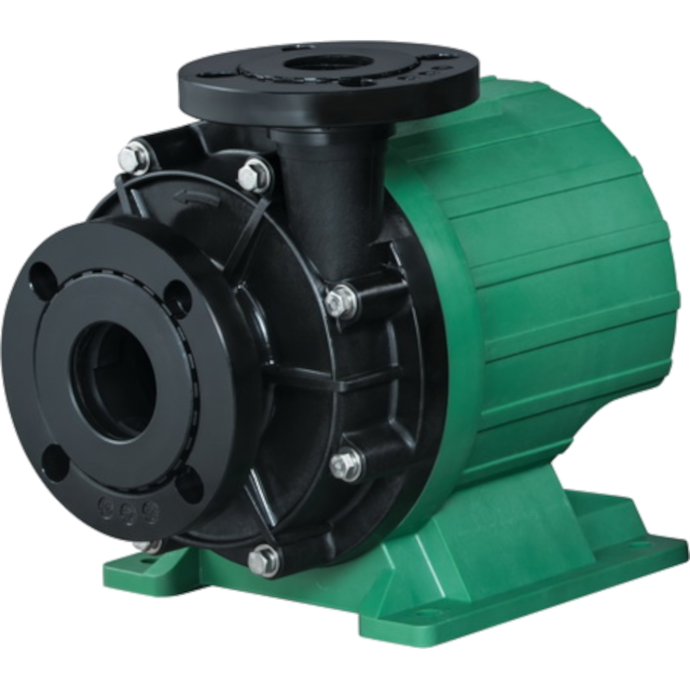

Features
- Specialized corrosion-resistant pumps for variable duty applications.
- Fully plastic exterior for acidic and saline environments.
- Fully sealed, leak-free construction.
- IE5 premium efficiency motors for maximum energy savings.
- Minimal moving parts with extended service life.
- Small and light for easy installation and handling.
Specification
- Pump Capacity: Up to 84 m3/h (1,400 lpm or 370 GPM)
- Pump Head: Up to 31 m (101 ft)
- Power Range: 1.1 - 7.5 kW (1½ - 10 hp)
- Casing Material: GFRPP, CFRETFE
- Type: Horizontal, Single Stage, Centrifugal
- Construction: Canned Motor, Sealless
Family of pumps
| Model | AVF-221 | AVF-441 | AVF-553 AVF-543 | AVF-653 | AVF-555 AVF-545 | AVF-655 | AVF-86J |
Suction x Discharge (mm)
|
25 x 25
|
40 x 40
|
50 x 50 50 x 40 | 65 x 50 |
50 x 50 50 x 40 | 65 x 50 | 80 x 65 |
Capacity Range (l/min)
|
10 - 180
|
20 - 300
|
40 - 450
|
60 - 600
|
60 - 500
|
80 - 750
|
80 - 1400
|
Head Range (m)
|
6 - 23
|
5 - 21 |
8 - 31
|
4 - 22
|
8 - 31 |
7 - 28
|
10 - 31 |
Motor Output (kW)
|
1.1
|
1.1
|
2.2
|
2.2
|
4.0
|
4.0
|
7.5
|
Application
Printed Circuit Board (PCB) Industry
