Precision cartridge and bag filters

AMF Series
https://www.assoma.com/web/image/product.template/24/image_1920?unique=9b7ab51

The AMF Series is our line-up of precision chemical filters to complement our pump products. The filters cover a broad range of commonly used applications. Like our pumps, the filter components can be customized to fit the customer’s application needs. Chemical filters are pressure-containing vessels, so operational safety is a top priority of our filter design. Besides being leak-free, our filters have special design features to improve safety, durability, and ease of use.

Catalog

User Manual

    This combination does not exist.

    Features SpecificationFamily of FiltersApplication

    Features

    • Made with corrosion-resistant materials to handle aggressive chemicals.
    • Built strong and durable to ensure safe, long-term, and leak-free use.
    • Easy to replace the filter media.
    • Fully customizable to fit your usage situation.
    • Coupled with a high-quality, leak-free pump.
    • Minimal maintenance required.

    Specification

    • Filtration Capacity: Up to 36 m3/h (600 lpm or 158 GPM)
    • Maximum Pressure: 4 kg/cm2
    • Chamber Material: PP
    • Type: Bag filter or Cartridge filter
    • Construction: In-tank or Stand-alone

    Family of Filters

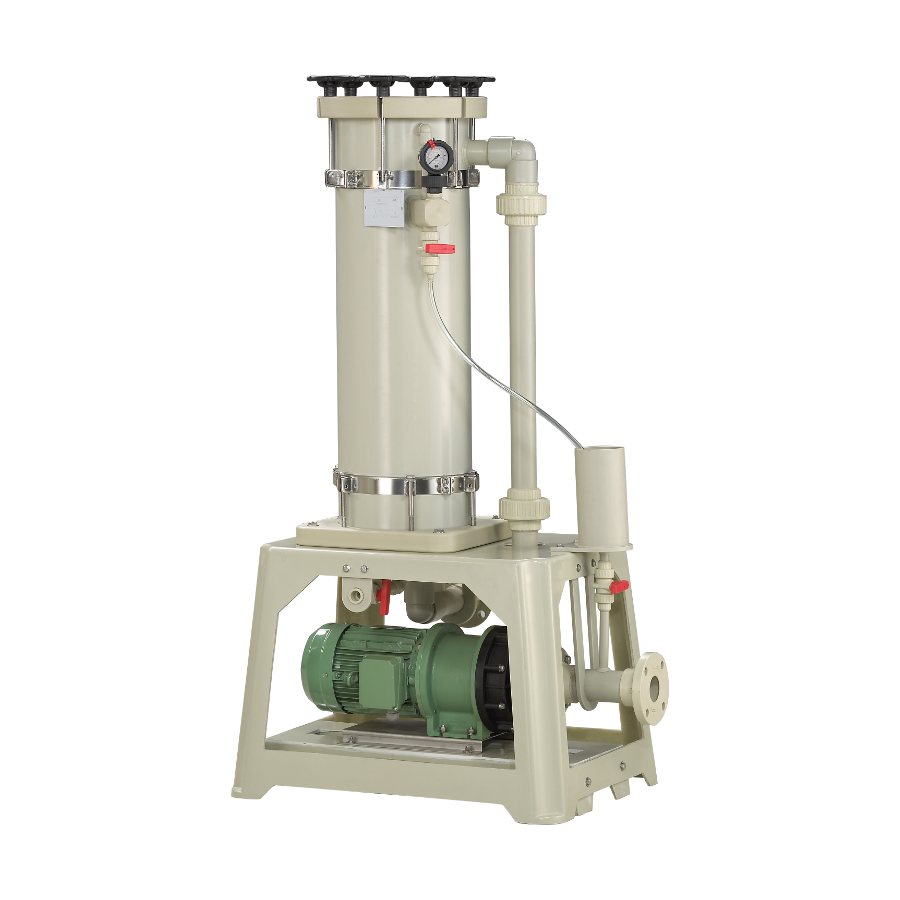

    Model AMF-1 AMF-2 AMF-4 AMF-6 AMF-12 AMF-16 AMF-24 AMF-36 AMF-54 AMF-B01

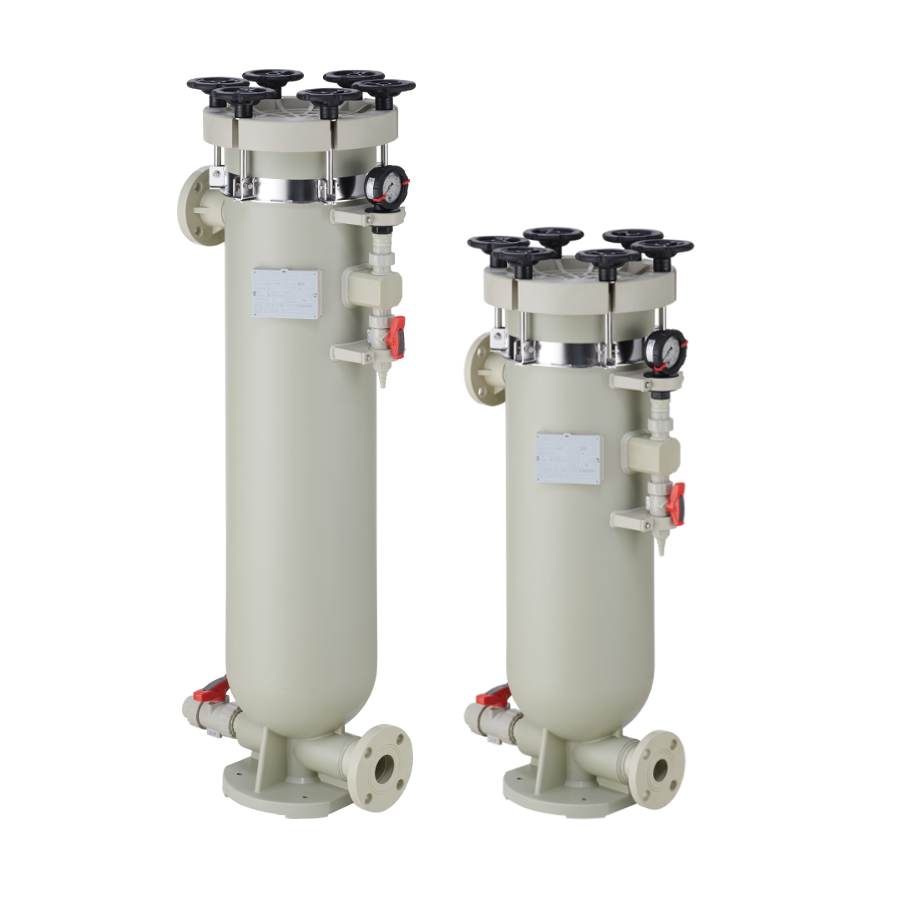

    AMF-U01    		 AMF-B02
    AMF-U02    		 AMF-B04
    Suction x Discharge (mm) 15 x 15 15 x 15 25 x 25 25 x 25 40 x 40 40 x 40 50 x 50 50 x 50 65 x 50 40 x 40 50 x 50 25 x 25
    Capacity Range(l/hr) 450 - 900 600 - 1200 1800 - 3600 2700 - 5400 5000 - 10000 6000 - 12000 9600 - 19200 12000 - 24000 16000 - 32400 5000 - 12000 9600 - 36000 1800 - 5400
    Filter Media Cartridge 10" x 1 20" x 1 20" x 2 20" x 3 20" x 6 20" x 8 20" x 12 20" x 18 30" x 18 - - -
    Filter Bag - - - - - - - - - #01 x 1 #02 x 1 #04 x 1
    Recommended Power (kW) 0.065 0.065 0.18 0.25 0.37 0.75 1.5 2.2 3.7 0.37 - 0.75 1.5 - 3.7 0.18 - 0.25
    Max. Pressure (kg/cm2) 0.8 0.8 1.5 1.5 2 3 4 4 4 4 4 1.5
    Max. Temperature: 70 °C
