PFA-Lined Magnetic Drive Process Pump

AME Series
https://www.assoma.com/web/image/product.template/22/image_1920?unique=6793678

AME-series pumps are heavy-duty process pumps designed with metallic armor and high purity PFA-lining to handle the toughest applications and for transferring high purity aggressive chemicals. These magnetic drive heavy duty PFA lined pumps are designed to be reliable and leak-free for applications with temperatures up to 150 ℃ through a combination of material selection and strong structural design. The AME-Series heavy duty PFA lined pumps are designed to ISO 2858 standards.

Catalog

User Manual

Drawings

    This combination does not exist.

    Features SpecificationFamily of pumpsApplication

    Features

    • Metal-armored, heavy-duty chemical process pumps.
    • Easily handles the toughest and highly aggressive chemicals.
    • Leak-free design for high-temperature applications up to 150℃.
    • High-purity PFA available for minimal contamination to process chemicals.
    • Simple construction for minimal maintenance and easy parts replacement.
    • ISO dimensional to easily and quickly replace existing pumps.

    Specification

    • Pump Capacity: Up to 180 m3/h (3,000 lpm or 792 GPM)
    • Pump Head: Up to 88 m (288 ft)
    • Power Range: 1.5 kW - 30 kW (2 - 40 hp)
    • Casing Material: ETFE, PFA
    • Type: Horizontal, Single Stage, Centrifugal
    • Construction: Magnetic Drive, Plastic Lined, Sealless

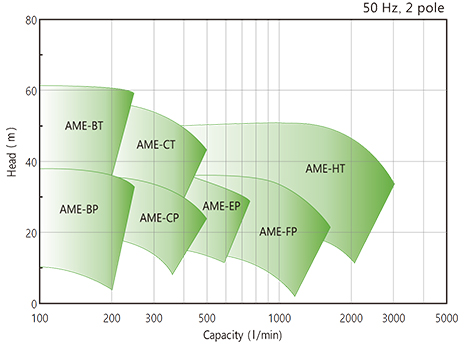

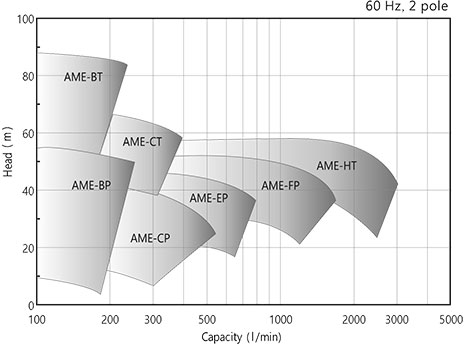

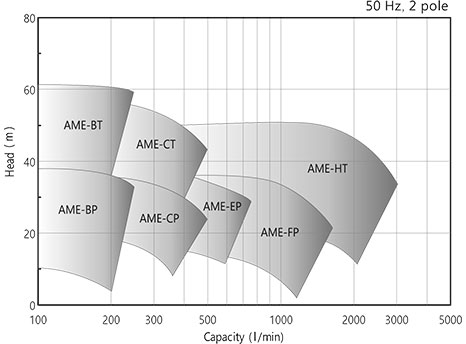

    Family of pumps


    Model AME-BP AME-BT AME-CP AME-CT AME-EP AME-FP AME-HT
    ISO Specification N/A N/A 50-32-160 50-32-200 65-50-160 80-65-160 100-80-200
    Suction x Discharge (mm) 40 x 25 40 x 25 50 x 32
    50 x 40    		 50 x 32
    50 x 40    		 65 x 50 80 x 65 100 x 80
    50 Hz Rated Capacity (l/min) 180 180 333 400 500 833 2500
    Rated head (m) 34.4 61.1 35.6 49.5 32.0 32.0 43.3
    60 Hz Rated Capacity (l/min) 180 180 333 400 500 1000 2500
    Rated head (m) 37.0 65.7 35.3 54.8 35.6 48.1 52.2
    Motor Output (kW) 1.2, 2.2 or 3.7 5.5 or 7.5 1.2, 2.2 or 3.7 5.5 or 7.5 5.5 or 7.5 5.5, 7.5, 11, 15 or 18.5 11, 15, 18.5, 22 or 30

    Application
