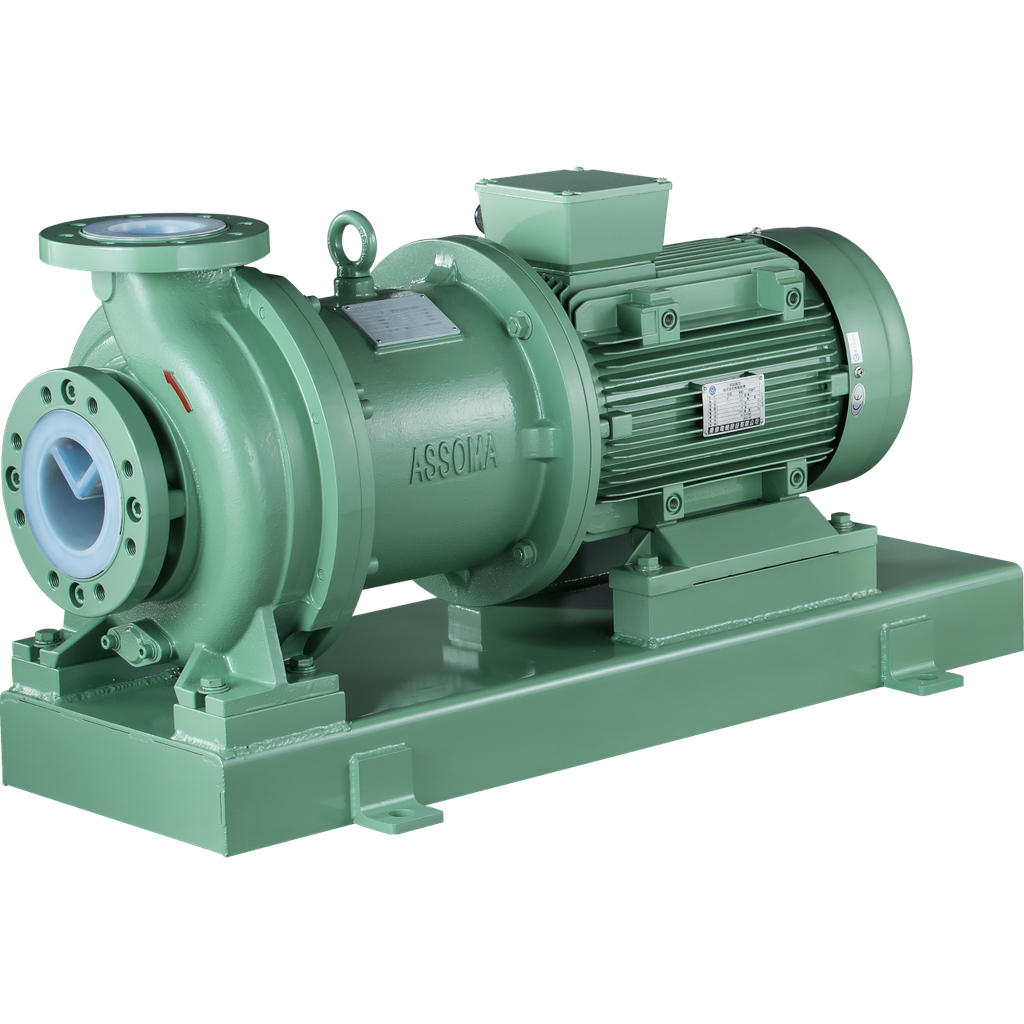

PFA-Lined Magnetic Drive Process Pump

AME Series

AME-series pumps are heavy-duty process pumps designed with metallic armor and high purity PFA-lining to handle the toughest applications and for transferring high purity aggressive chemicals. These magnetic drive heavy duty PFA lined pumps are designed to be reliable and leak-free for applications with temperatures up to 150 ℃ through a combination of material selection and strong structural design. The AME-Series heavy duty PFA lined pumps are designed to ISO 2858 standards.

Catalog

User Manual

Drawings

Features

Metal-armored, heavy-duty chemical process pumps.
Easily handles the toughest and highly aggressive chemicals.
Leak-free design for high-temperature applications up to 150℃.
High-purity PFA available for minimal contamination to process chemicals.
Simple construction for minimal maintenance and easy parts replacement.
ISO dimensional to easily and quickly replace existing pumps.

Specification

Pump Capacity: Up to 180 m3/h (3,000 lpm or 792 GPM)
Pump Head: Up to 88 m (288 ft)
Power Range: 1.5 kW - 30 kW (2 - 40 hp)
Casing Material: ETFE, PFA
Type: Horizontal, Single Stage, Centrifugal
Construction: Magnetic Drive, Plastic Lined, Sealless

Family of pumps

Model		AME-BP	AME-BT	AME-CP	AME-CT	AME-EP	AME-FP	AME-HT
ISO Specification		N/A	N/A	50-32-160	50-32-200	65-50-160	80-65-160	100-80-200
Suction x Discharge (mm)		40 x 25	40 x 25	50 x 32 50 x 40	50 x 32 50 x 40	65 x 50	80 x 65	100 x 80
50 Hz	Rated Capacity (l/min)	180	180	333	400	500	833	2500
50 Hz	Rated head (m)	34.4	61.1	35.6	49.5	32.0	32.0	43.3
60 Hz	Rated Capacity (l/min)	180	180	333	400	500	1000	2500
60 Hz	Rated head (m)	37.0	65.7	35.3	54.8	35.6	48.1	52.2
Motor Output (kW)		1.2, 2.2 or 3.7	5.5 or 7.5	1.2, 2.2 or 3.7	5.5 or 7.5	5.5 or 7.5	5.5, 7.5, 11, 15 or 18.5	11, 15, 18.5, 22 or 30
