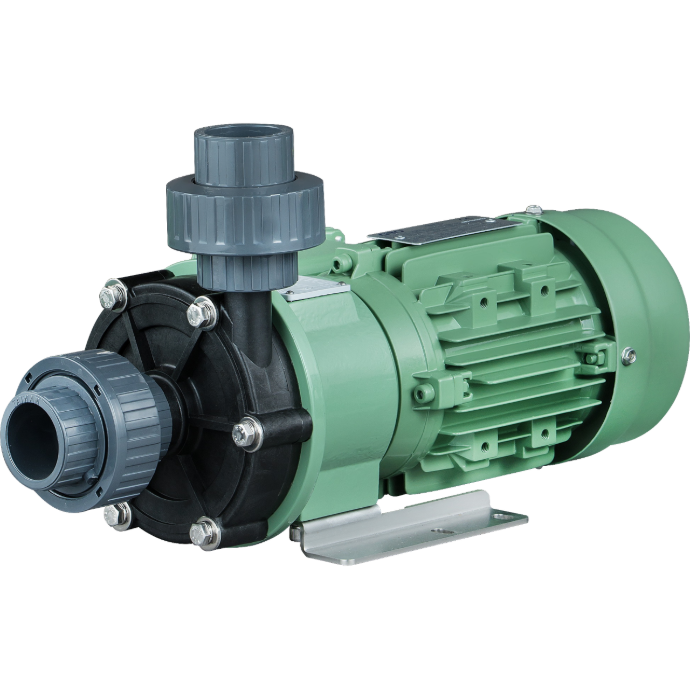

Small Magnetic Drive Seal-less Pump

AM Series
https://www.assoma.com/web/image/product.template/19/image_1920?unique=221779a

These are small, light-duty magnetic drive sealless pumps for the safe handling of corrosive chemicals. Typical uses include production systems, labs, and sampling systems. The AM-Series are sealless magnetic drive pumps. The chemicals are completely sealed within the pump with no leakage. This protects the environment and pump operators from exposure to the chemicals. No special tools are needed to install the pump. The simple design makes it very easy to use and maintain.

Catalog

User Manual

Drawings

    This combination does not exist.

    Features SpecificationFamily of pumpsApplication

    Features

    • Small, light-duty, fully plastic corrosion-resistant pump.
    • Simple construction, easy to install and maintain.
    • Leak-free to handle corrosive, hazardous, and dangerous chemicals.
    • Stable flow rate with no pulsation.
    • Various connection options to fit with your system.
    • Ideal for small chemical systems, chemical sampling, and laboratory applications.

    Specification

    • Pump Capacity: Up to 8 m3/h (135 lpm or 35.5 GPM)
    • Pump Head: Up to 11.5 m (37.5 ft)
    • Power Range: 65 W - 250 W (1/12 - ⅓ hp)
    • Casing Material: PP, GFRPP, PVDF, CFRETFE
    • Type: Horizontal, Single Stage, Centrifugal
    • Construction: Magnetic Drive, Sealless

    Family of pumps


    Model AM-10 AM-30 AM-50
    Suction x Discharge (mm)
    Thread G1/2 G1 G1
    Union 15 25 25
    Flange - 20 20
    50 Hz Rated Capacity (l/min) 20 40 80
    Rated head (m) 2.8 6 7
    60 Hz Rated Capacity (l/min) 20 50 80
    Rated head (m) 4.4 7.8 8
    Motor Output (kW) 0.065 0.18 0.25
