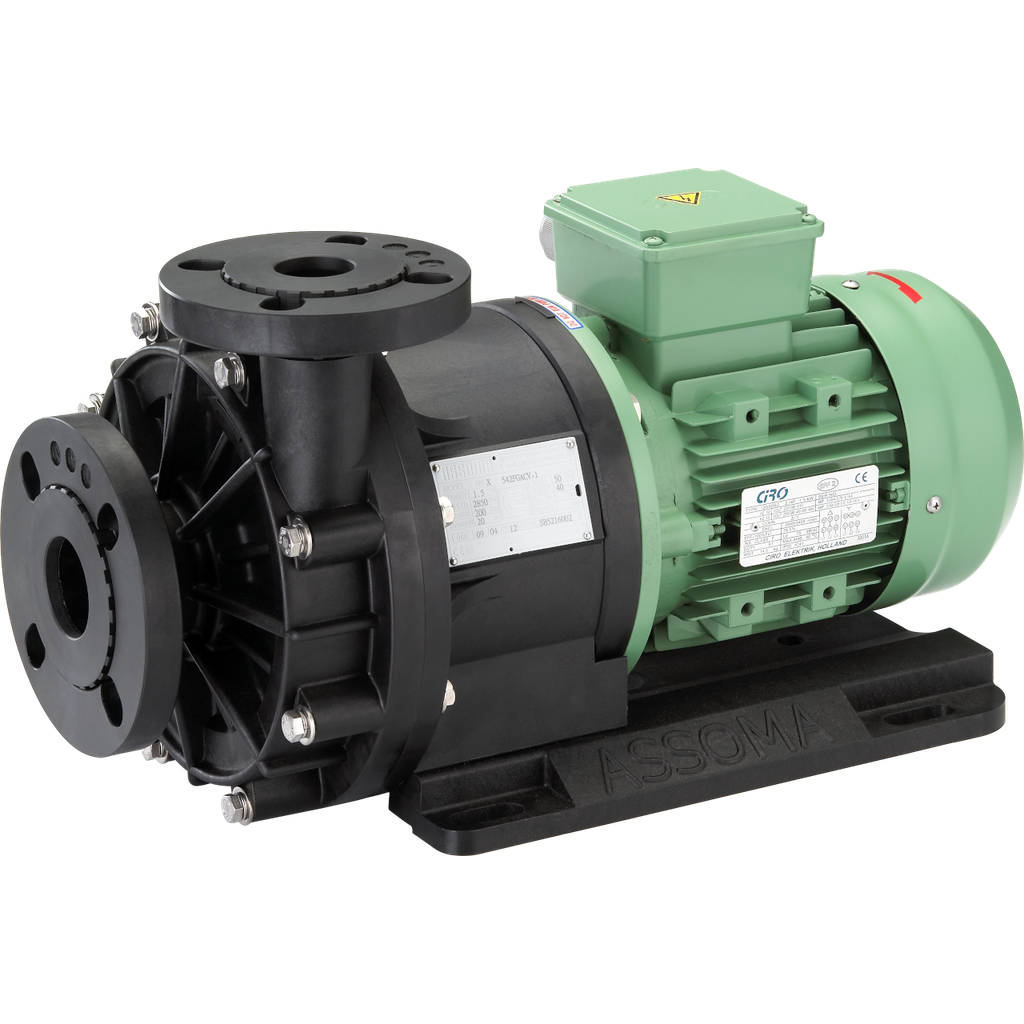

Magnetic Drive Seal-less Pump

AMX Series
https://www.assoma.com/web/image/product.template/20/image_1920?unique=9d8ac0b

AMX is a series of general-purpose, chemical-resistant pumps made of corrosion-resistant materials. This series is designed to cover medium-duty chemical applications for a broad range of industries. The AMX-Series corrosion resistant pumps are of magnetic drive, seal-less construction. Besides being leak-free, we have additional safety features to prevent accidental exposure of potentially dangerous chemicals to the environment and pump operators over long-term use.

Catalog

User Manual

Drawings

    This combination does not exist.

    Features SpecificationFamily of pumpsApplication

    Features

    • General-purpose, full plastic chemical corrosion resistant pump.
    • No-leakage pump design.
    • Designed to withstand abnormal operations.
    • High-efficiency pump design.
    • Built for use in corrosive environments.
    • Minimal pump maintenance.

    Specification

    • Pump Capacity: Up to 80 m3/h (1,350 lpm or 352 GPM)
    • Pump Head: Up to 45 m (147 ft)
    • Power Range: 0.37 kW - 7.5 kW (½ - 10 hp)
    • Casing Material: GFRPP, CFRETFE
    • Type: Horizontal, Single Stage, Centrifugal
    • Construction: Magnetic Drive, Sealless

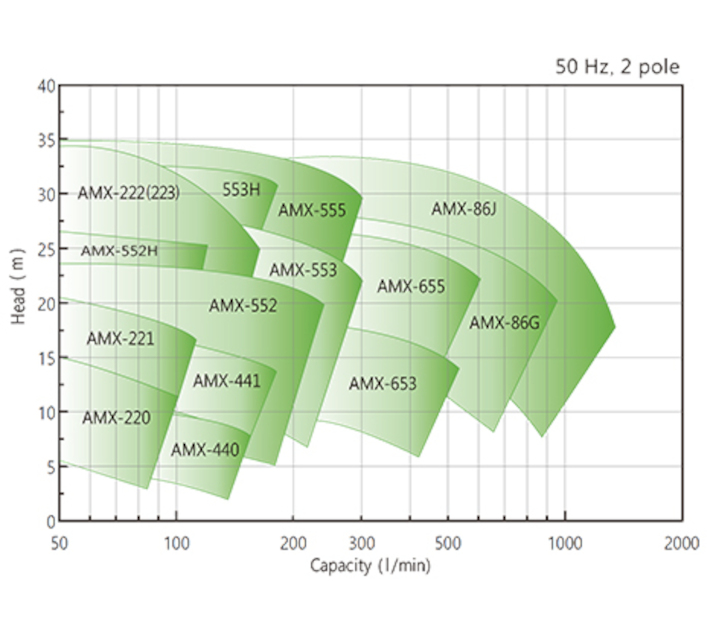

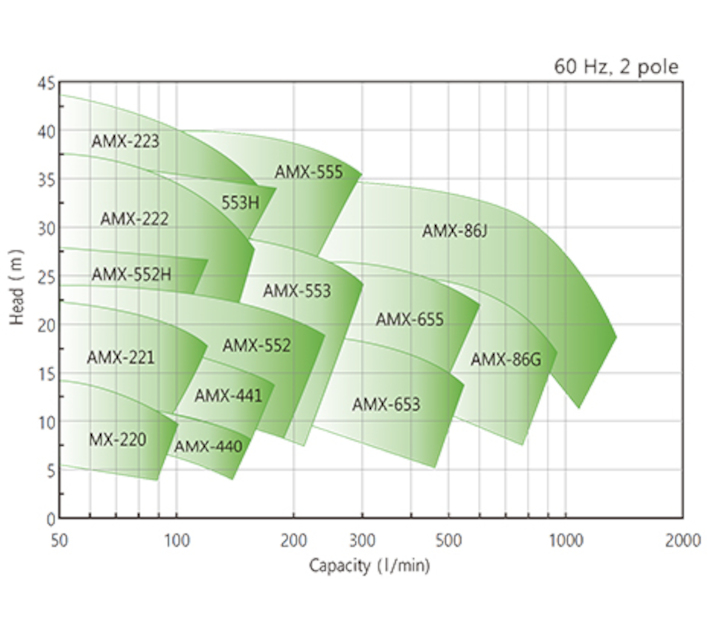

    Family of pumps


    Model AMX-220 AMX-440 AMX-221 AMX-441 AMX-222 AMX-223 AMX-552
    AMX-542    		 AMX-552H
    AMX-542H    		 AMX-553
    AMX-543    		 AMX-553H
    AMX-543H    		 AMX-555
    AMX-545    		 AMX-653 AMX-655 AMX-86G AMX-86J
    Suction x Discharge (mm) 25 x 25 40 x 40 25 x 25 40 x 40 25 x 25 25 x 25 50 x 50
    50 x 40    		 50 x 50
    50 x 40    		 50 x 50
    50 x 40    		 50 x 50
    50 x 40    		 50 x 50
    50 x 40    		 65 x 50 65 x 50 80 x 65 80 x 65
    50 Hz Rated Capacity (l/min) 80 100 80 150 80 80 200 100 250 150 250 450 500 800 800
    Rated head (m) 10.6 9.9 19.2 15.0 33.2 33.2 21.1 25.8 24.1 31.7 31.4 15.7 23.9 22.7 29.0
    60 Hz Rated Capacity (l/min) 80 100 80 150 80 80 200 100 250 150 250 450 500 800 800
    Rated head (m) 11.8 10.3 21.1 15.4 34.5 41.7 20.3 27.2 25.9 34.8 37.4 15.9 23.9 20.4 30.5
    Motor Output (kW) 0.37 0.37 0.75 0.75 1.5 2.2 1.5 1.5 2.2 2.2 3.7 2.2 3.7 5.5 7.5
