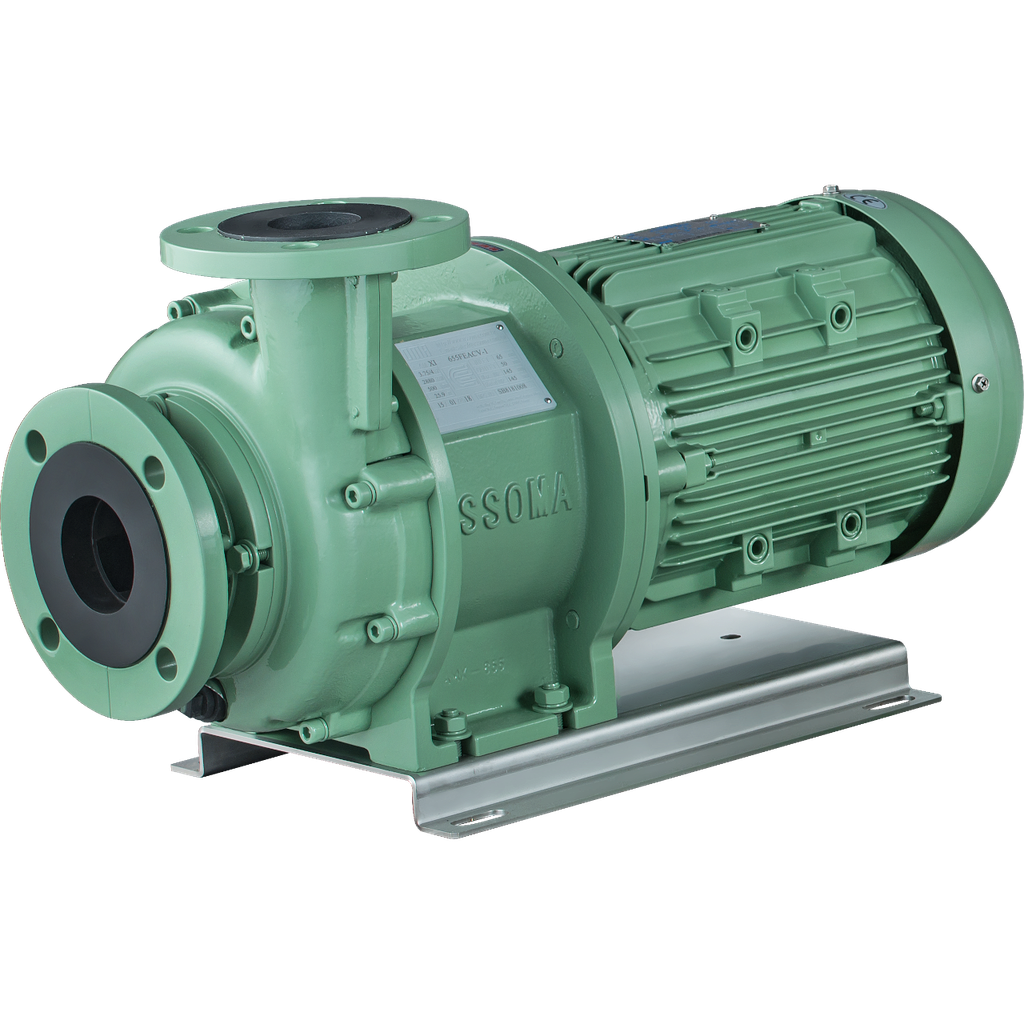

磁力驅動無軸封泵浦 (副本)

AVF-C
https://www.assoma.com/web/image/product.template/21/image_1920?unique=53c2eca

The AVF-C series of pumps is the first of its kind of plastic canned motor centrifugal pump that achieved the highest pump efficiency rating of MEI > 0.7 according to Commission Regulation (EU) No 547/2012 of 25 June 2012. These canned pumps are designed to handle a broad range of aggressive chemicals and can be used in highly demanding areas such as corrosive environments and clean rooms.

    This combination does not exist.

    Features SpecificationFamily of pumpsApplication

    Features

    • Metal-armored medium duty chemical pump with corrosion-resistant plastic lining
    • No-leakage, designed to handle corrosive, hazardous, and dangerous chemicals
    • Designed to withstand abnormal operations
    • Minimal pump maintenance
    • Built rugged for outdoors and aggressive environments

    Specification

    • Pump Capacity: Up to 57 m^3/h (950 lpm or 250 GPM)
    • Pump Head: Up to 40 m (131 ft)
    • Power Range: 0.37 kW - 3.7 kW (½ - 5 hp)
    • Casing Material: CFRETFE
    • Type: Horizontal, Single Stage, Centrifugal
    • Construction: Magnetic Drive, Plastic Lined, Sealless

    Family of pumps


    Model AMXI-420 AMXI-441 AMXI-542 AMXI-542H AMXI-543 AMXI-543H AMXI-545 AMXI-653 AMXI-655
    Suction x Discharge (mm) 40 x 25 40 x 40 50 x 40 50 x 40 50 x 40 50 x 40 50 x 40 65 x 50 65 x 50
    50 Hz Rated Capacity (l/min) 100 150 200 100 250 150 250 400 500
    Rated head (m) 10.7 15.5 22.2 26.7 25.2 33.2 31.0 18.8 26.0
    60 Hz Rated Capacity (l/min) 100 150 200 100 250 150 250 400 500
    Rated head (m) 9.6 15.5 21.5 29.9 25.1 33.9 34.8 17.9 26.2
    Motor Output (kW) 0.37 0.75 1.5 1.5 2.2 2.2 3.7 2.2 3.7
