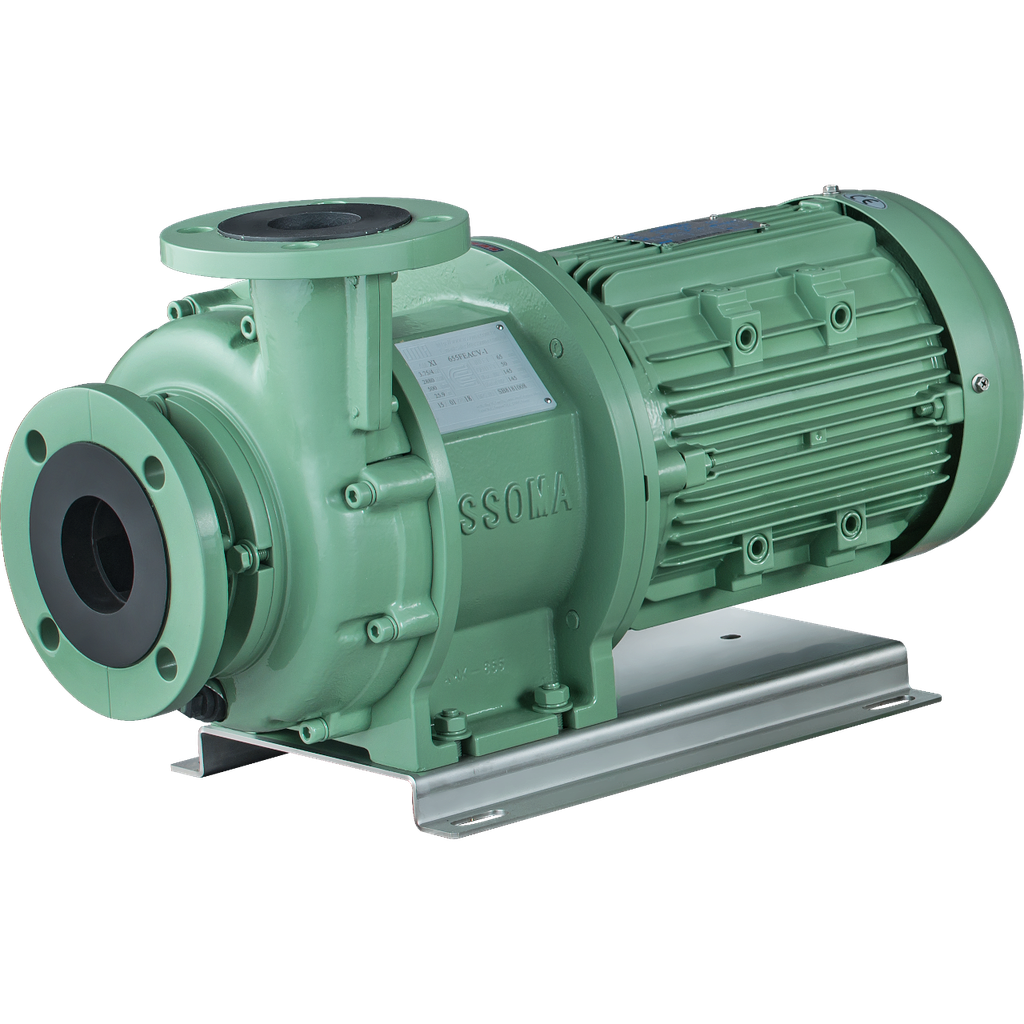

ETFE-Lined Magnetic Drive Seal-less Pumps

AMXI Series

The AMXI is a series of armored pumps ideal for outdoor applications for a wide range of industries such as utilities, chemical, and wastewater treatment processing. The AMXI series is similar to the AMX-Series pumps in size and performance. These waste water treatment chemical pumps are also of magnetic drive construction, which is a leak-free, seal-less design. The corrosion-resistant lining allows the pumps to safely handle a wide range of corrosive and hazardous chemicals.

Catalog

User Manual

Drawings

Features

Metal-armored medium duty chemical pump with corrosion-resistant plastic lining
No-leakage, designed to handle corrosive, hazardous, and dangerous chemicals
Designed to withstand abnormal operations
Minimal pump maintenance
Built rugged for outdoors and aggressive environments

Specification

Pump Capacity: Up to 57 m^3/h (950 lpm or 250 GPM)
Pump Head: Up to 40 m (131 ft)
Power Range: 0.37 kW - 3.7 kW (½ - 5 hp)
Casing Material: CFRETFE
Type: Horizontal, Single Stage, Centrifugal
Construction: Magnetic Drive, Plastic Lined, Sealless

Family of pumps

Model		AMXI-420	AMXI-441	AMXI-542	AMXI-542H	AMXI-543	AMXI-543H	AMXI-545	AMXI-653	AMXI-655
Suction x Discharge (mm)		40 x 25	40 x 40	50 x 40	50 x 40	50 x 40	50 x 40	50 x 40	65 x 50	65 x 50
50 Hz	Rated Capacity (l/min)	100	150	200	100	250	150	250	400	500
50 Hz	Rated head (m)	10.7	15.5	22.2	26.7	25.2	33.2	31.0	18.8	26.0
60 Hz	Rated Capacity (l/min)	100	150	200	100	250	150	250	400	500
60 Hz	Rated head (m)	9.6	15.5	21.5	29.9	25.1	33.9	34.8	17.9	26.2
Motor Output (kW)		0.37	0.75	1.5	1.5	2.2	2.2	3.7	2.2	3.7
