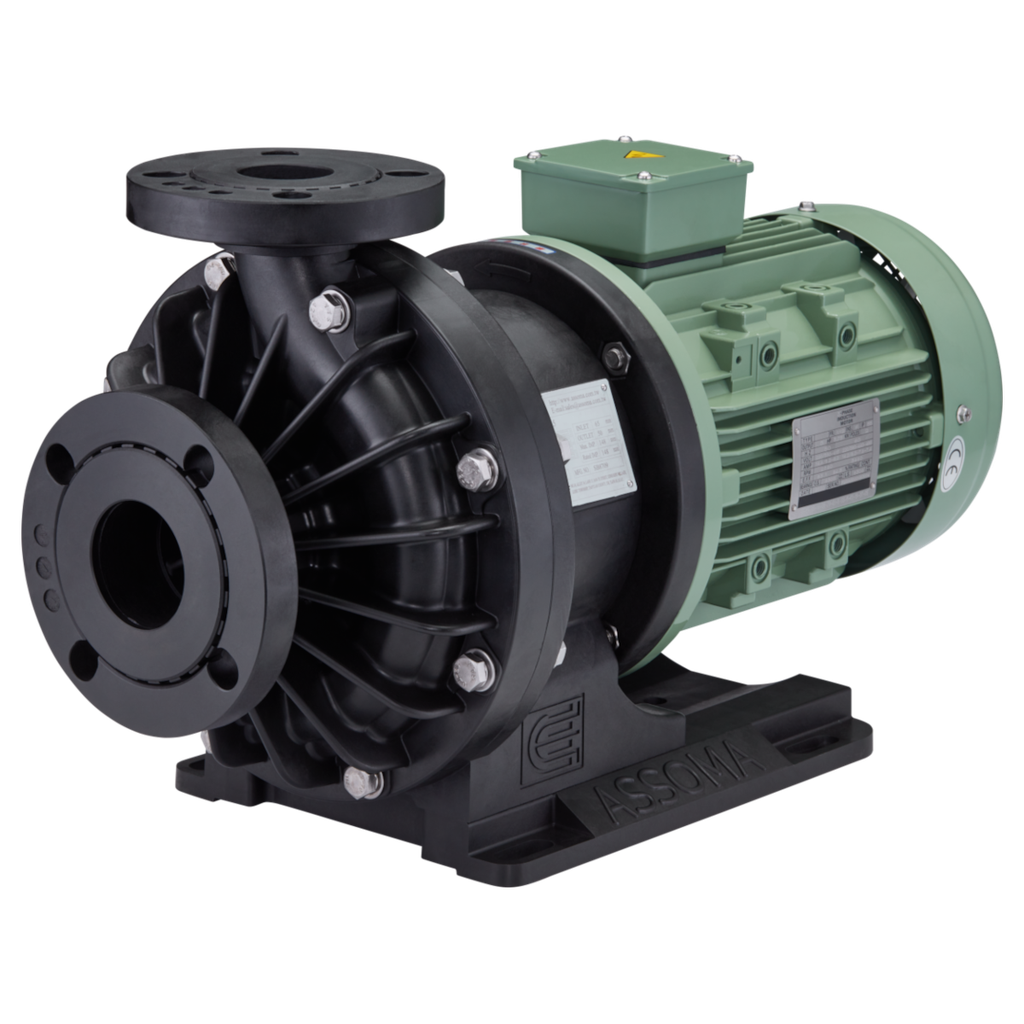

磁力驅動無軸封泵浦 (副本)

AVF-C
https://www.assoma.com/web/image/product.template/18/image_1920?unique=53c2eca

The AVF-X Series is an all-purpose pump series designed to handle aggressive chemicals for everyday applications. These pumps feature advanced hydraulic designs that exceed the highest pump efficiency rating of MEI > 0.7 according to Commission Regulation (EU) No 547/2012 of 25 June 2012, helping you reduce your energy use and carbon footprint.

    This combination does not exist.

    Features SpecificationFamily of pumpsApplication

    Features

    • Superior efficiency pump design.
    • No-leakage pump design.
    • Designed to withstand abnormal operations.
    • General-purpose, full plastic corrosion-resistant pump.
    • Built for use in corrosive environments.
    • Minimal pump maintenance.

    Specification

    • Pump Capacity: Up to 51 m3/h (850 lpm or 225 GPM)
    • Pump Head: Up to 40 m (131 ft)
    • Power Range: 0.75 kW - 3.75 kW (1 - 5 hp)
    • Casing Material: GFRPP, CFRPP, CFRETFE
    • Type: Horizontal, Single Stage, Centrifugal
    • Construction: Magnetic Drive, Sealless

    Family of pumps


    Model AVF-X221 AVF-X441 AVF-X552
    AVF-X542    		 AVF-X552H
    AVF-X542H    		 AVF-X553
    AVF-X543    		 AVF-X553H
    AVF-X543H    		 AVF-X555
    AVF-X545    		 AVF-X653 AVF-X655
    Suction x Discharge (mm) 25 x 25 40 x 40 50 x 50
    50 x 40    		 50 x 50
    50 x 40    		 50 x 50
    50 x 40    		 50 x 50
    50 x 40    		 50 x 50
    50 x 40    		 65 x 50 65 x 50
    50 Hz Rated Capacity (l/min) 120 200 200 150 250 150 300 540 600
    Rated head (m) 18.0 14.0 20.0 26.1 25.6 33.0 32.0 15.5 25.9
    60 Hz Rated Capacity (l/min) 120 200 200 150 250 150 300 540 600
    Rated head (m) 17.6 15.1 19.9 26.8 25.6 35.0 36.2 15.2 25.1
    Motor Output (kW) 0.75 0.75 1.5 1.5 2.2 2.2 3.7 2.2 3.7

    Application
