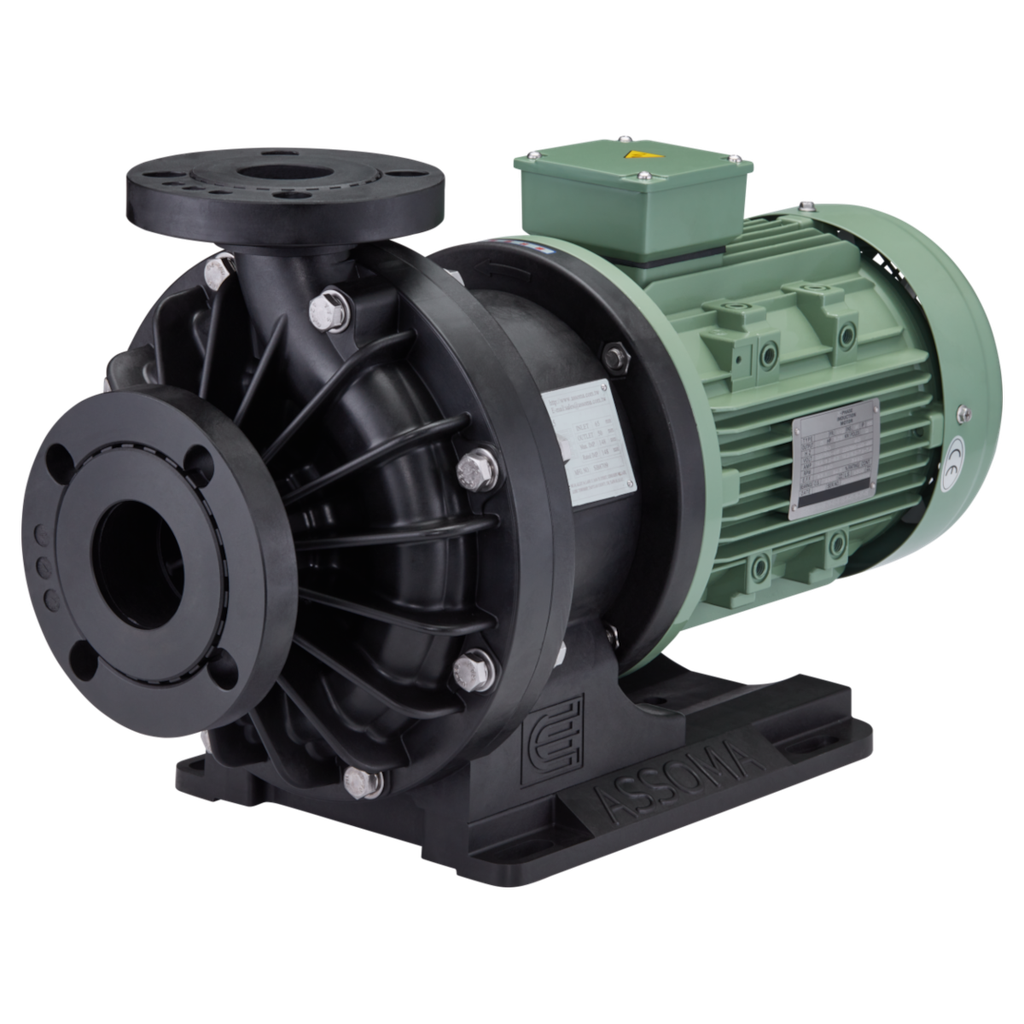

Superior Efficiency Magnetic Drive Chemical Pump

AVF-X Series

The AVF-X Series is an all-purpose pump series designed to handle aggressive chemicals for everyday applications. These pumps feature advanced hydraulic designs that exceed the highest pump efficiency rating of MEI > 0.7 according to Commission Regulation (EU) No 547/2012 of 25 June 2012, helping you reduce your energy use and carbon footprint.

Catalog

User Manual

Drawings

Features

Superior efficiency pump design.
No-leakage pump design.
Designed to withstand abnormal operations.
General-purpose, full plastic corrosion-resistant pump.
Built for use in corrosive environments.
Minimal pump maintenance.

Specification

Pump Capacity: Up to 51 m3/h (850 lpm or 225 GPM)
Pump Head: Up to 40 m (131 ft)
Power Range: 0.75 kW - 3.75 kW (1 - 5 hp)
Casing Material: GFRPP, CFRPP, CFRETFE
Type: Horizontal, Single Stage, Centrifugal
Construction: Magnetic Drive, Sealless

Family of pumps

Model		AVF-X221	AVF-X441	AVF-X552 AVF-X542	AVF-X552H AVF-X542H	AVF-X553 AVF-X543	AVF-X553H AVF-X543H	AVF-X555 AVF-X545	AVF-X653	AVF-X655
Suction x Discharge (mm)		25 x 25	40 x 40	50 x 50 50 x 40	50 x 50 50 x 40	50 x 50 50 x 40	50 x 50 50 x 40	50 x 50 50 x 40	65 x 50	65 x 50
50 Hz	Rated Capacity (l/min)	120	200	200	150	250	150	300	540	600
50 Hz	Rated head (m)	18.0	14.0	20.0	26.1	25.6	33.0	32.0	15.5	25.9
60 Hz	Rated Capacity (l/min)	120	200	200	150	250	150	300	540	600
60 Hz	Rated head (m)	17.6	15.1	19.9	26.8	25.6	35.0	36.2	15.2	25.1
Motor Output (kW)		0.75	0.75	1.5	1.5	2.2	2.2	3.7	2.2	3.7
