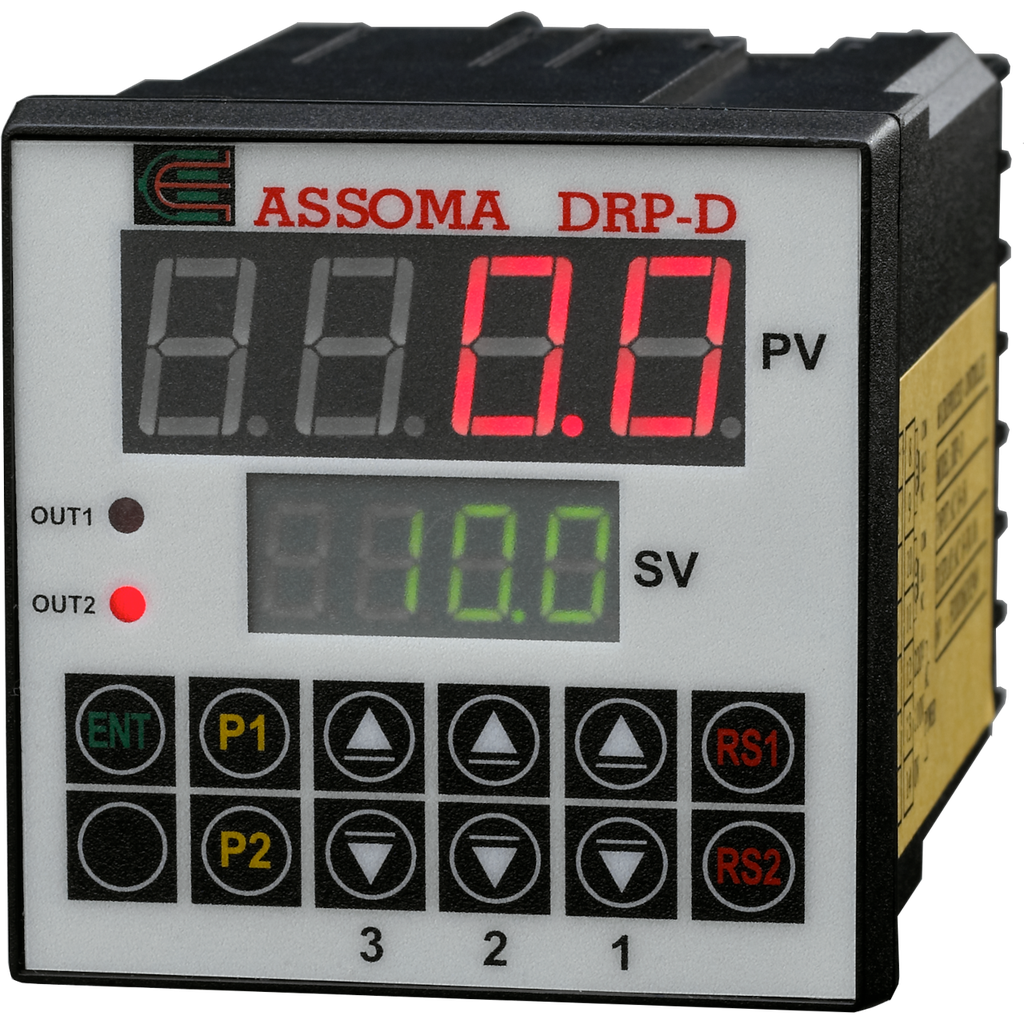

Overload and Dry-Run Protector

DRP-D
https://www.assoma.com/web/image/product.template/25/image_1920?unique=555ee6d

The pump protector system is a critical component within the pumping system. It is of utmost importance to ensure the pump runs smoothly. The DRP-D’s pump dry run protector main function is to protect the pump by monitoring the loading of the pump. The over-current setting protects the motor from overloading, while the under-current setting protects the pump during dry-run and decoupling to protect the pump from damage. By protecting the pump, we can prevent extended and costly production downtime.

User Manual

    This combination does not exist.

    Features SpecificationApplication

    Features

    • Protects the pump during abnormal operation.
    • Monitors the motor loading to detect overloading and underloading.
    • Prevents prolonged dry-running.
    • Prevents motor burn-out.
    • No additional sensors required, fast and easy to setup.

    Specification

    • Power Supply: AC 110 or 220 V ± 20%(50 or 60 Hz)
    • Input Range: AC 0 to 5 Amperes (CT required for inputs above 5 A)
    • Accuracy (23±5℃): 0.15% F.S. ± 1 digit
    • Output Display: 0 - 999 adjustable
    • Time Delay: 0 - 99.9 seconds adjustable
    • Relay Output:
      • AC 250V (3A/PF = 1)
      • AC 110V (5A/PF = 1)
      • DC 30V (5A)

    Application
