Magnetic Drive Seal-less Pump
AMXI Series

The AMXI is a series of armored pumps ideal for outdoor applications for a wide range of industries such as utilities, chemical, and wastewater treatment processing. The AMXI series is similar to the AMX-Series pumps in size and performance. These waste water treatment chemical pumps are also of magnetic drive construction, which is a leak-free, seal-less design. The corrosion-resistant lining allows the pumps to safely handle a wide range of corrosive and hazardous chemicals.

Magnetic Drive Seal-less Pump AMXI Series
Magnetic Drive Seal-less Pump
Features
  • Metal-armored medium duty chemical pump with corrosion-resistant plastic lining
  • No-leakage, designed to handle corrosive, hazardous, and dangerous chemicals
  • Designed to withstand abnormal operations
  • Minimal pump maintenance
  • Built rugged for outdoors and aggressive environments
Specification
  • Pump Capacity: Up to 57 m^3/h (950 lpm or 250 GPM)
  • Pump Head: Up to 40 m (131 ft)
  • Power Range: 0.37 kW - 3.7 kW (½ - 5 hp)
  • Casing Material: CFRETFE
  • Type: Horizontal, Single Stage, Centrifugal
  • Construction: Magnetic Drive, Plastic Lined, Sealless

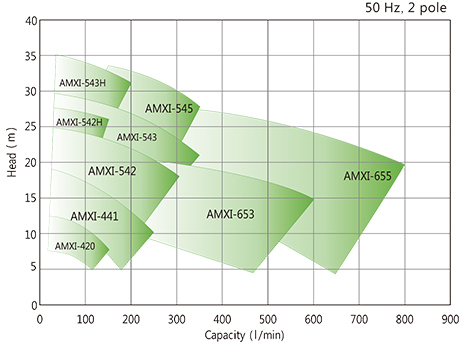

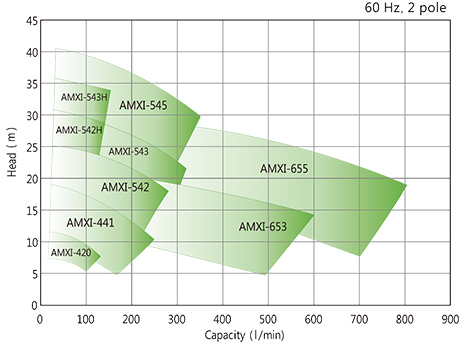

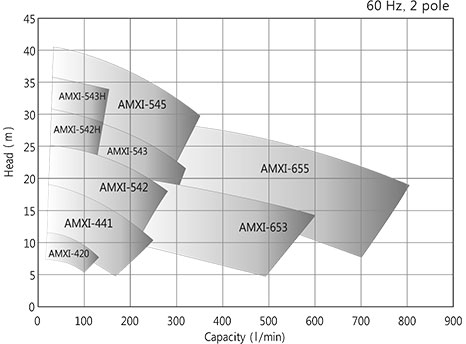

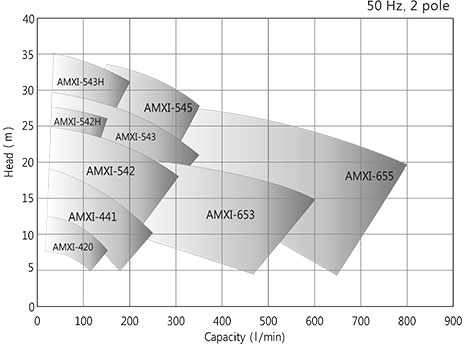

AMXI-Series Family of pumps
AMXI-Series Family of pumps
AMXI-Series Family of pumps
Model AMXI-420 AMXI-441 AMXI-542 AMXI-542H AMXI-543 AMXI-543H AMXI-545 AMXI-653 AMXI-655
Suction x Discharge (mm) 40 x 25 40 x 40 50 x 40 50 x 40 50 x 40 50 x 40 50 x 40 65 x 50 65 x 50
50 Hz Rated Capacity (l/min) 100 150 200 100 250 150 250 400 500
Rated Head (m) 10.7 15.5 22.2 26.7 25.2 33.2 31.0 18.8 26.0
60 Hz Rated Capacity (l/min) 100 150 200 100 250 150 250 400 500
Rated Head (m) 9.6 15.5 21.5 29.9 25.1 33.9 34.8 17.9 26.2
Motor Output (kW) 0.37 0.75 1.5 1.5 2.2 2.2 3.75 2.2 3.75
