Variable Frequency Canned Motor Pump
AVF Series

The AVF is a line of corrosion-resistant pumps designed for chemical applications where process control is crucial. It is designed to minimize the life-cycle cost (LCC) of pump ownership.
The small size of the pump is ideal for tight installations in equipment or in places where space is limited. The AVF pump is of canned motor construction, which is a leak-free, seal-less design.

Features
  • Specialized corrosion-resistant pumps for variable duty applications.
  • Fully plastic exterior for acidic and saline environments.
  • Fully sealed, leak-free construction.
  • IE4 and future IE5 premium efficiency and above motors for maximum energy savings.
  • Minimal moving parts with extended service life.
  • Small and light for easy installation and handling.
Specification
  • Pump Capacity: Up to 84 m3/h (1,400 lpm or 370 GPM)
  • Pump Head: Up to 31 m (101 ft)
  • Power Range: 1.1 kW - 7.5 kW (1½ - 10 hp)
  • Casing Material: GFRPP, CFRETFE
  • Type: Horizontal, Single Stage, Centrifugal
  • Construction: Canned Motor, Sealless

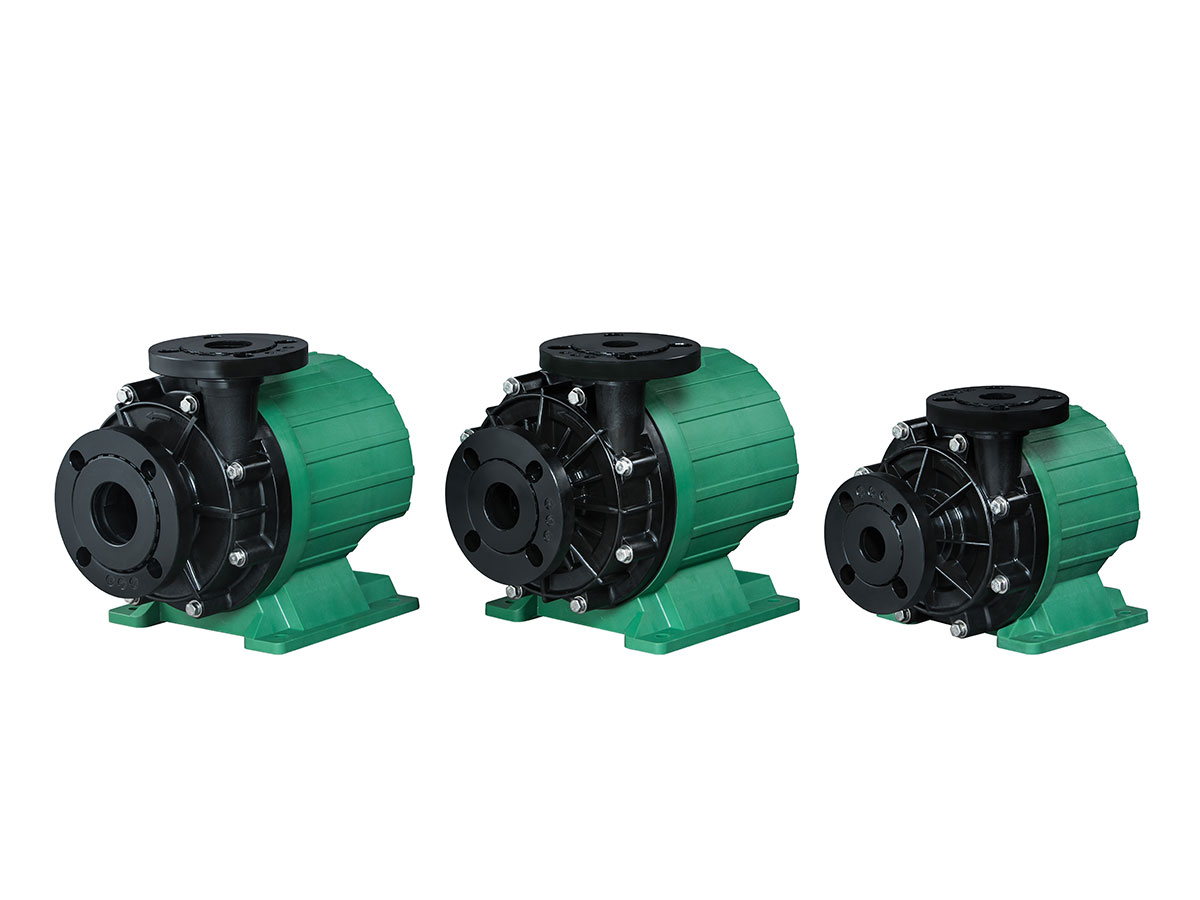

AVF-Series Family of pumps
AVF-Series Family of pumps
Model AVF-221 AVF-441 AVF-543 / AVF-553 AVF-653 AVF-545 / AVF-555 AVF-655 AVF-86J
Suction x Discharge(mm) 25 x 25 40 x 40 50 x 40
50 x 50
65 x 50 50 x 40
50 x 50
65 x 50 80 x 65
Capacity Range (l/min) 10 - 180 20 - 300 40 - 450 60 - 600 60 - 500 80 - 750 80 - 1400
Head Range (m) 6 - 23 5 - 21 8 - 31 4 - 22 8 - 31 7 - 28 10-31
Motor Output(kW) 1.1 1.1 2.2 2.2 4.0 4.0 7.5
